Mk Acoustic Model : XD 4.11 Thương hiệu : U.S.A Xuất xứ : China Thông số kỹ thuật Model Name XD 4.11 GS1 (EAN) CODE 4.26032E+12 System Type 4-Channel Class D Amplifier Output Power 4 x 2700W @ 2Ohm all channels driven 4 x 1830W @ 4Ohm 20Hz - 20 kHz, 0.1 % THD 4 x...

Mk Acoustic
Model : XD 4.11
Thương hiệu : U.S.A
Xuất xứ : China

Thông số kỹ thuật
Model Name XD 4.11
GS1 (EAN) CODE 4.26032E+12
System Type 4-Channel Class D Amplifier
Output Power 4 x 2700W @ 2Ohm
all channels driven 4 x 1830W @ 4Ohm
20Hz - 20 kHz, 0.1 % THD 4 x 1100W @ 8Ohm
Output Power 2 x 5000W @ 4Ohm
Bridge mode 2 x 3660W @ 8Ohm
  2 x 3200W @16Ohm
THD+N @ 8Ω 1kHz,1dB ≤0.06%
Slew Rate >50v/μs
Frequency Response 10Hz -34kHz / ±0.3dB
@1Watt, 8Ohm
Damping Factor >3000
(1kHz and below)
Signal to Noise Ratio >104dBA
20Hz -20 kHz
Channel Separation >75dB
Crosstalk@1kHz
Voltage Gain 41,7dB (0,775V:113V)
Input Sensitivity selectable 0.775V/1V/1.4V/2V
Input Impedance 20k Ohm Balanced
10k Ohm Unbalanced

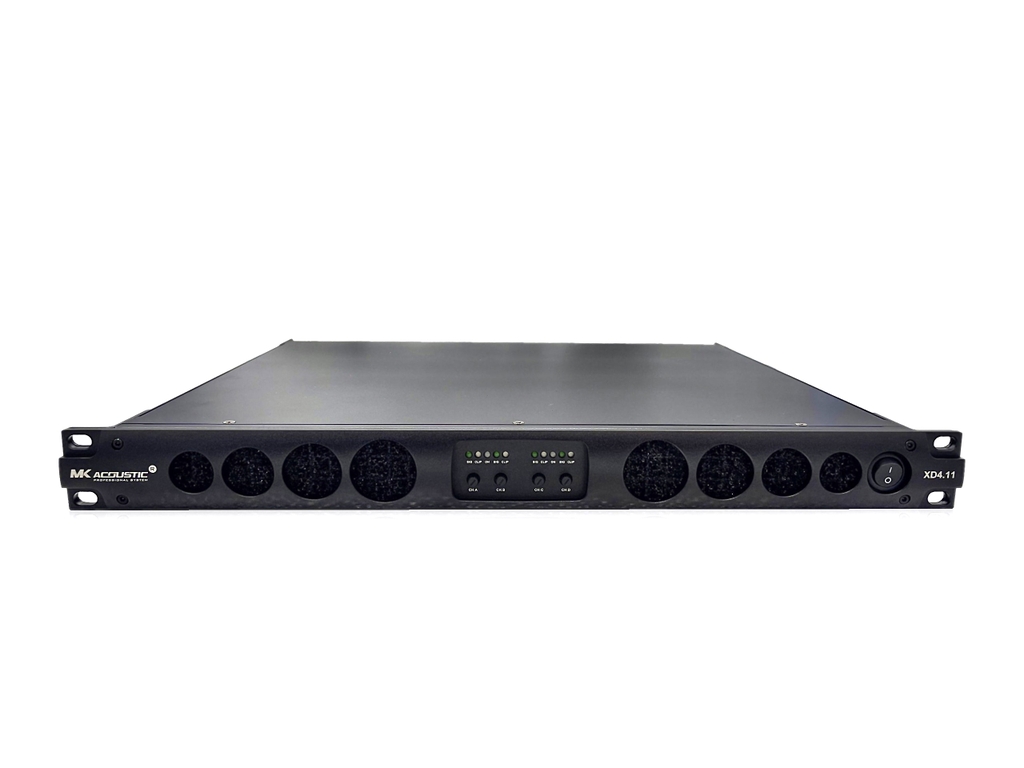

Front Control Power switch, Gain control
Rear Control Sensitivity Switch,
Mode Switch
LED Indicators Signal VU Meter
Protect,
Parallel,
Bridge

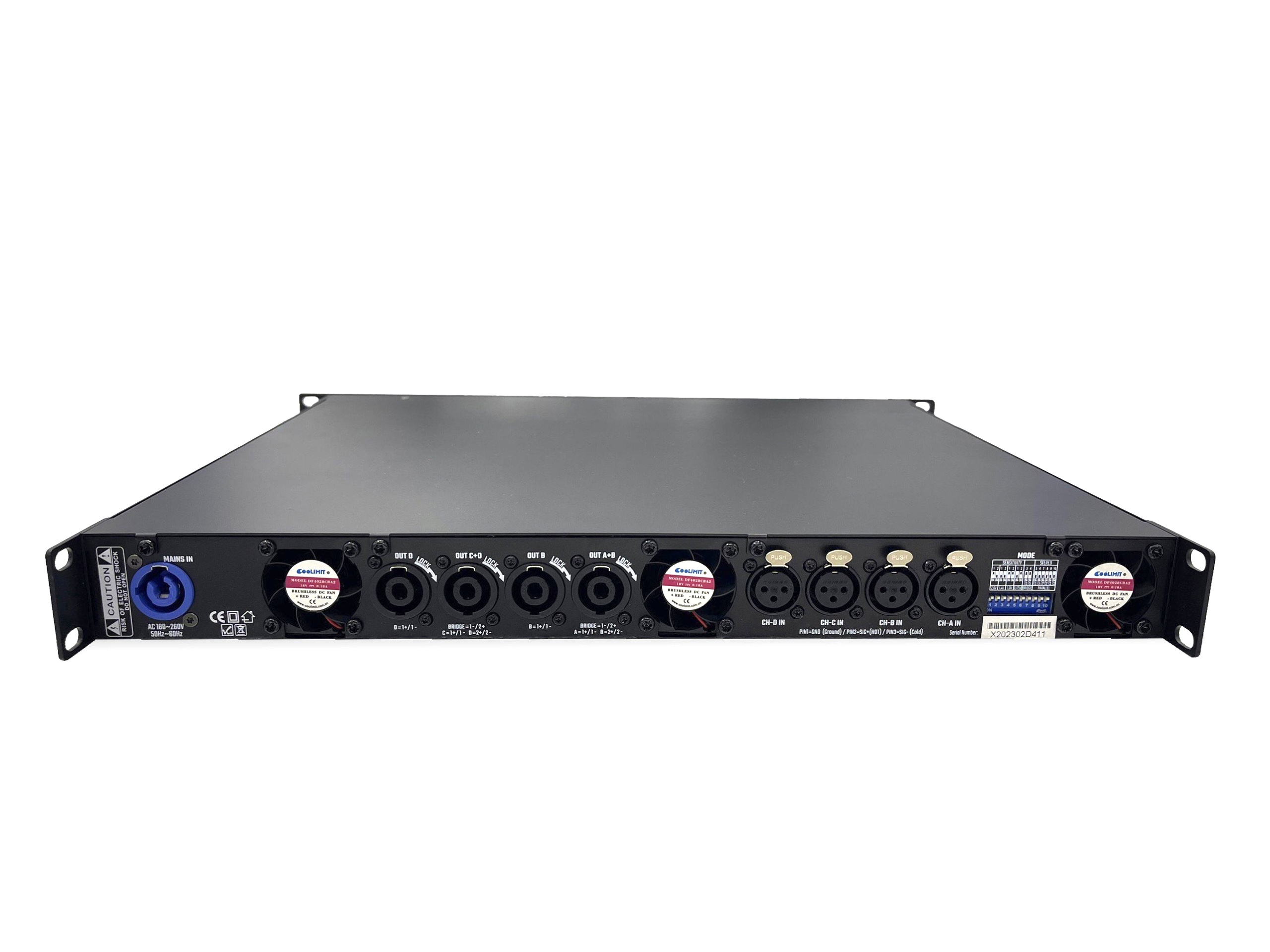

Input Connectors XLR Active balanced
pin1 gnd / pin 2+ / pin3-
Output Connectors 4 Neutrik NL4 Sockets
Cooling Low Noise Continuously Variable
speed fan
Protection Full short circuit, Open circuit,
thermal, Ultrasonic, RF Protection.
Stable Into reactive or
Mismatched loads
Load Protection On/Off muting
DC fault power
Supply shutdown
Operating Voltage 230V (+/- 10%), 50-60Hz
USA Version
110V (+/- 10%), 50-60Hz
Fuse T-25A
Dimensions (h/w/d) 19“/1U 483W x 402D x 44H
Net weight 8,2 kg
