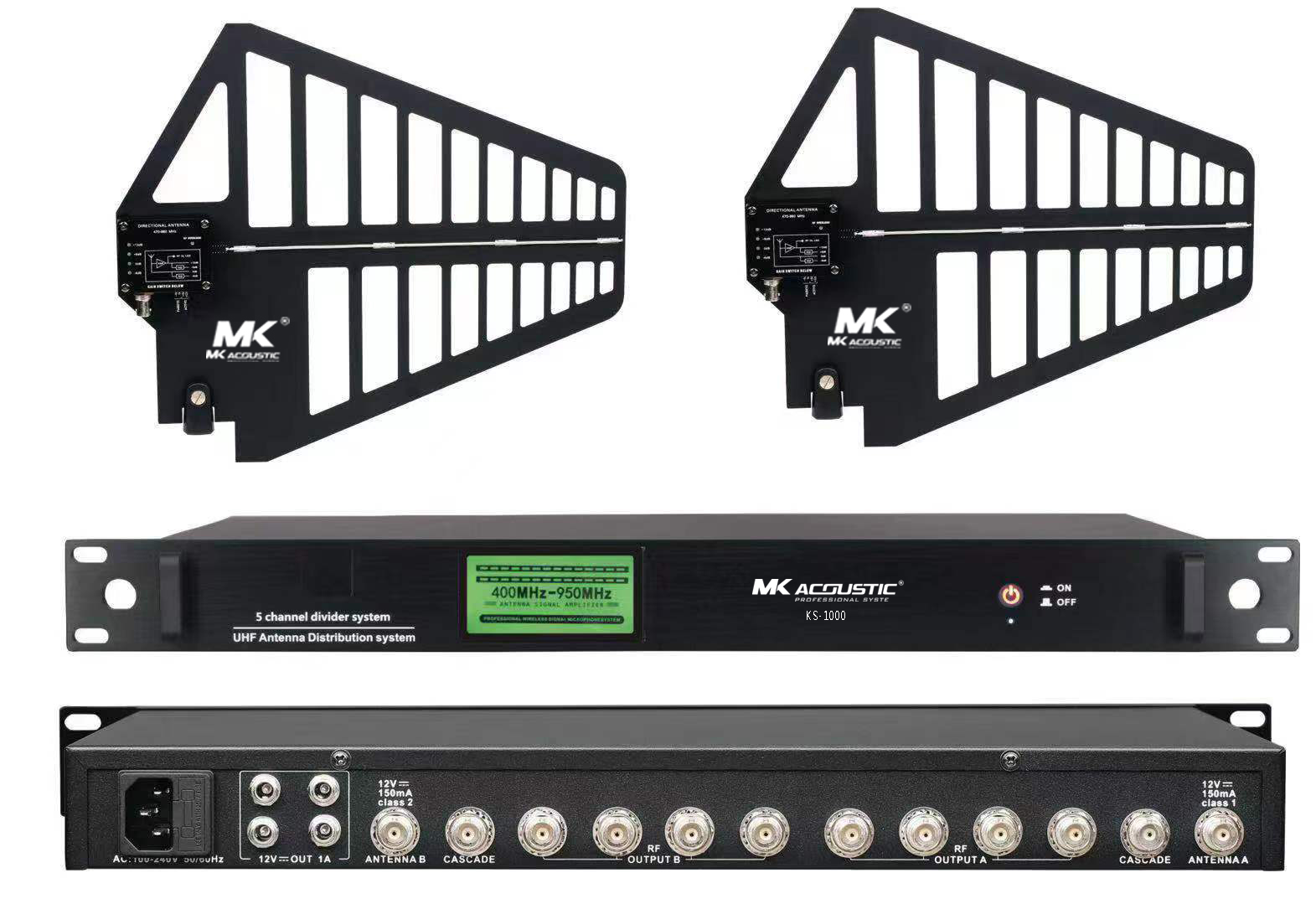

Bộ Kích Sóng KS-1000

Model : KS-1000
Thương hiệu : MK Acoustic
Xuất xứ : China

Thông số kỹ thuật :

Antenna parameters. Frequency: U segment 460-970MHz. Display mode: LED indicator. Control switch: toggle. Interface: B-type female seat. Output impedance: 50 ohms (SWR < = 1: 1.5). Gain (maximum): 12dB (typical). Radiation angle: 90 degrees. Integrated CNC adjustable: -6 _ 12 dB. 3rd order intermodulation intercept point: + 45dBm (typical). Gain flatness: + 1 dB, full band. Power supply: + 9V to 12V (typ.), 150mA
